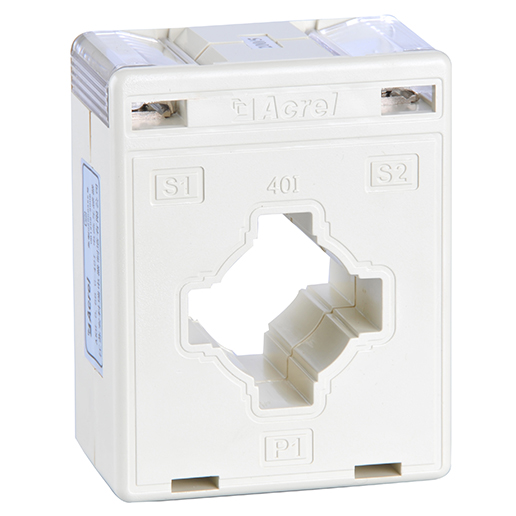

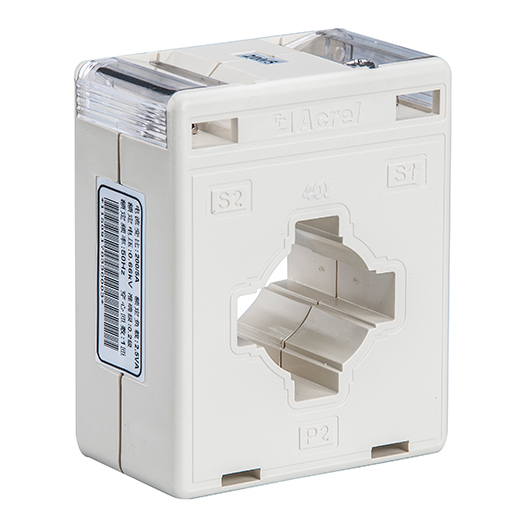

AKH-0.66系列测量型电流互感器
规格 |
额定电流比(A) |
准确级及相应额定负荷(VA) |
穿心 匝数 (匝) |
母排规格(mm)/根数 |
电缆最大 外径(mm) |
安装方式 |
||
0.2级 |
0.5级 |
1级 |
||||||
30I |
15/5(1) |
|
|
1.5 |
5 |
/ |
Φ22 |
A |
20/5(1) |
|
|
1.5 |
4 |
||||
25-30/5(1) |
|
|
1.5 |
3 |
||||
40-60/5(1) |
|
|
1.5 |
2 |
||||
75-100/5(1) |
|
|
1.5 |
1 |
30×10/1 |
A,B |
||
150-200/5(1) |
|
2.5 |
|
1 |
||||
250/5(1) |
|
3.75 |
|
1 |
||||
300-450/5(1) |
|
5 |
|
1 |
||||
500/5(1) |
|
10 |
|
1 |
||||
600/5(1) |
|
10 |
|
1 |
||||
40I |
10/5(1) |
|
|
1.5 |
8 |
/ |
Φ30 |
A |
15/5(1) |
|
|
1.5 |
5 |
||||
20/5(1) |
|
|
1.5 |
4 |
||||
25-30/5(1) |
|
|
1.5 |
3 |
||||
40-60/5(1) |
|
|
1.5 |
2 |
||||
75/5(1) |
|
|
1.5 |
1 |
40×10/1 |
A,C |
||
100/5(1) |
|
|
1.5 |
1 |
||||
150/5(1) |
|
|
2.5 |
1 |
||||
200/5(1) |
|
2.5 |
|
1 |
||||
250/5(1) |
|
3.75 |
|
1 |
||||
300-450/5(1) |
|
5 |
|
1 |
||||
500-800/5(1) |
|
10 |
|
1 |
||||
1000/5(1) |
10 |
|
|
1 |
||||
60I |
150/5(1) |
|
|
2.5 |
1 |
60×10/1 60×6/1-2 |
Φ44 |
A,C |
200/5(1) |
|
2.5 |
|
1 |
||||
250/5(1) |
|
3.75 |
|
1 |
||||
300-450/5(1) |
|
5 |
|
1 |
||||
500-800/5(1) |
|
10 |
|
1 |
||||
1000-1250/5(1) |
10 |
|
|
1 |
||||
1500-2000/5(1) |
20 |
|
|
1 |
||||
2500/5(1) |
30 |
|
|
1 |
||||
80I |
150/5(1) |
|
|
2.5 |
1 |
80×10/1 |
Φ50 |
A,C |
200-250/5(1) |
|
2.5 |
|
1 |
||||
300-450/5(1) |
|
5 |
|
1 |
||||
500-800/5(1) |
|
10 |
|
1 |
||||
1000-1250/5(1) |
10 |
|
|
1 |
||||
1500-2000/5(1) |
20 |
|
|
1 |
||||
2500-3000/5(1) |
30 |
|
|
1 |
规格 |
额定电流比(A) |
准确级及相应额定负荷(VA) |
穿心匝数(匝) |
母排规格(mm)/根数 |
安装方式 |
||
0.2级 |
0.5级 |
1级 |
|||||
30II |
100/5(1) |
|
|
1.5 |
1 |
30x10/1-2 |
A,C |
150/5(1) |
|
|
1.5 |
1 |
|||
200/5(1) |
|
2.5 |
|
1 |
|||
250/5(1) |
|
3.75 |
|
1 |
|||
300-450/5(1) |
|
5 |
|
1 |
|||
500-600/5(1) |
|
10 |
|
1 |
|||
40II |
100/5(1) |
|
|
1.5 |
1 |
40×10/ 1-2 |
A,C |
150/5(1) |
|
|
2.5 |
1 |
|||
200/5(1) |
|
2.5 |
|
1 |
|||
250/5(1) |
|
3.75 |
|
1 |
|||
300-450/5(1) |
|
5 |
|
1 |
|||
500-800/5(1) |
|
10 |
|
1 |
|||
1000/5(1) |
10 |
|
|
1 |
|||
50Ⅱ |
150 |
|
|
2.5 |
1 |
50×10/ 1-2 |
|
200-250/5(1) |
|
2.5 |
|
1 |
|||
300-450/5(1) |
|
5 |
|
1 |
|||
500-800/5(1) |
|
10 |
|
1 |
|||
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500/5(1) |
20 |
|
|
1 |
|||
60Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
60×10/ 1-2 |
C |
300-450/5(1) |
|
5 |
|
1 |
|||
500-800/5(1) |
|
10 |
|
1 |
|||
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500/5(1) |
30 |
|
|
1 |
|||
60×50Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
60×10/ 1-3 |
D
|
300-450/5(1) |
|
5 |
|
1 |
|||
500-800/5(1) |
|
10 |
|
1 |
|||
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500/5(1) |
30 |
|
|
1 |
|||
80Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
80×10/ 1-2 |
|
300-450/5(1) |
|
5 |
|
1 |
|||
500-800/5(1) |
|
10 |
|
1 |
|||
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-3000/5(1) |
30 |
|
|
1 |
|||
80×50Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
80×10/ 1-3 |
|
300-450/5(1) |
|
5 |
|
1 |
|||
500-800/5(1) |
|
10 |
|
1 |
|||
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-3000/5(1) |
30 |
|
|
1 |
|||
100Ⅱ |
300-450/5(1) |
|
5 |
|
1 |
100×10/ 1-2 |
|
500-800/5(1) |
|
10 |
|
1 |
|||
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-3000/5(1) |
30 |
|
|
1 |
|||

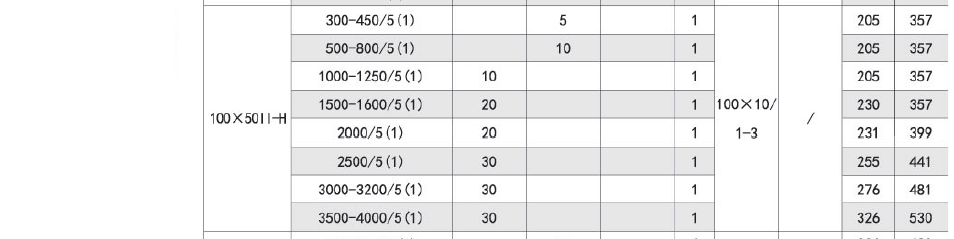

100×50Ⅱ |
300-450/5(1) |
|
5 |
|
1 |
100×10/ 1-3 |
|
500-800/5(1) |
|
10 |
|
1 |
|||
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-3000/5(1) |
30 |
|
|
1 |
|||
100×80Ⅱ |
600-800/5(1) |
|
10 |
|
1 |
100×10/ 1-4 |
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-4000/5(1) |
30 |
|
|
1 |
|||
120×50Ⅱ |
500-800/5(1) |
|
10 |
|
1 |
120×10/ 1-3 |
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-5000/5(1) |
30 |
|
|
1 |
|||
130×50Ⅱ |
600-800/5(1) |
|
10 |
|
1 |
125×10/1-3 130×10/1-3 60×10/2-6 |
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-5000/5(1) |
30 |
|
|
1 |
|||
120×80Ⅱ 150×50Ⅱ |
1000-1250/5(1) |
10 |
|
|
1 |
120×10/ 1-4 |
D |
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-5000/5(1) |
30 |
|
|
1 |
|||
170×100Ⅱ |
1500-2000/5(1) |
15 |
|
|
1 |
170×10/1-3 100×10/3-6 |
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
180×50Ⅱ |
1200-2000/5(1) |
10 |
|
|
1 |
180×10/1-3 |
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
200×50Ⅱ 220×50Ⅱ 260×50Ⅱ |
1500-2000/5(1) |
20 |
|
|
1 |
200×10/1-3 100×10/4-6 |
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
260×100Ⅱ |
1200-1500/5(1) |
10 |
|
|
1 |
250×10/2-5 125×10/4-10 |
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-6300/5(1) |
30 |
|
|
1 |
规格 |
额定电流比(A) |
准确级及相应额定负荷(VA) |
穿心匝数(匝) |
母排规格(mm)/根数 |
安装方式 |
|
0.2级 |
0.5级 |
|||||
60Ⅲ |
200-300/5(1) |
|
2.5 |
1 |
60×10/ 1-3 |
E |
400/5(1) |
|
5 |
1 |
|||
500-800/5(1) |
|
10 |
1 |
|||
1000/5(1) |
10 |
|
1 |
|||
1200-1500/5(1) |
15 |
|
1 |
|||
2000/5(1) |
20 |
|
1 |
|||
2500/5(1) |
30 |
|
1 |
|||
80Ⅲ |
300-400/5(1) |
|
5 |
1 |
80×10/ 1-3 |
|
500-800/5(1) |
|
10 |
1 |
|||
1000/5(1) |
10 |
|
1 |
|||
1200-1500/5(1) |
15 |
|
1 |
|||
2000/5(1) |
20 |
|
1 |
|||
2500-3000/5(1) |
30 |
|
1 |
|||
100Ⅲ |
600-800/5(1) |
|
10 |
1 |
100×10/ 1-3 |
|
1000/5(1) |
10 |
|
1 |
|||
1200-1500/5(1) |
15 |
|
1 |
|||
2000/5(1) |
20 |
|
1 |
|||
2500-5000/5(1) |
30 |
|
1 |
|||
130Ⅲ |
2000/5(1) |
20 |
|
1 |
130×10/1-3 125×10/1-3 |
|
2500-5000/5(1) |
30 |
|
1 |
规格 |
额定电 流比 |
准确级 |
穿心 匝数 |
母排规格(mm)/根数 |
电缆最大 外径(mm) |
安装方式 |
0.2级 |
||||||
Z-10 |
50A/25mA |
10Ω |
|
1 |
Φ10 |
导轨式 |
规格 |
额定电 流比 |
准确级及相应额定负荷 |
穿心 匝数 |
电缆最大 外径(mm) |
0.2级 |
||||
Z-15 |
100A/20mA |
10Ω |
1 |
Φ15 |
规格 |
额定电流比 |
准确级及相应额定负荷(VA/Ω) |
电缆最大外径(mm) |
|
0.5级 |
1级 |
|||
Z-3×Φ20 |
5-100/5A |
|
1.5VA |
Φ20 |
150/5A |
1.5VA |
|
||
200/5A |
2.5VA |
|
||
5-100/1A |
|
1.5Ω |
||
150/1A |
1.5Ω |
|
||
200/1A |
2.5Ω |
|
||
5-200A/50mA |
0.5VA |
|
规格 |
额定电流比 |
准确级及相应额定负荷(Ω) |
穿心 匝数 |
电缆最大 外径(mm) |
||
0.2级 |
0.5级 |
1级 |
||||
W-7 |
5-15/5mA |
10 |
|
|
1 |
Φ7 |
10-30/10mA |
10 |
|
|
1 |
||
5/20mA |
|
10 |
|
2 |
||
10-15/20mA |
|
10 |
|
1 |
||
20-60/20mA |
10 |
|
|
1 |
规格 |
额定电流比 |
准确级及相应额定负荷(Ω) |
穿心 匝数 |
电缆最大 外径(mm) |
||
0.2级 |
0.5级 |
1级 |
||||
W-8 |
5-15/5mA |
10 |
|
|
1 |
Φ8 |
10-30/10mA |
10 |
|
|
1 |
||
5/20mA |
|
10 |
|
2 |
||
10-15/20mA |
|
10 |
|
1 |
||
20-60/20mA |
10 |
|
|
1 |
规格 |
额定电流比 |
准确级及相应额定负荷(Ω) |
穿心 匝数 |
电缆最大 外径(mm) |
||
0.2级 |
0.5级 |
1级 |
||||
W-12 |
5/20mA |
|
10 |
|
4 |
Φ12 |
10-15/20mA |
|
10 |
|
2 |
||
20/20mA |
|
10 |
|
1 |
||
30-100/20mA |
10 |
|
|
1 |
规格 |
额定电流比 |
准确级及相应额定负荷(Ω) |
穿心 匝数 |
电缆最大 外径(mm) |
||
0.2级 |
0.5级 |
1级 |
||||
W-20 |
5/20mA |
|
10 |
|
4 |
Φ20 |
10-15/20mA |
|
10 |
|
2 |
||
20/20mA |
|
10 |
|
1 |
||
30-200/20mA |
10 |
|
|
1 |
规格 |
额定电 流比 |
准确级及相应额定负荷(Ω) |
耐压 |
开路电压 |
环境温度℃ |
安装方式 |
||
0.2级 |
0.5级 |
1级 |
||||||
EMS |
50A/10mA |
10 |
|
|
3kV |
≤7.8V |
-20℃~70℃ |
导轨 |
规格 |
额定电流比(A) |
准确级及相应额定负荷(VA) |
穿心 匝数 (匝) |
母排规格(mm)/根数 |
电缆最大 外径(mm) |
安装方式 |
||
0.2级 |
0.5级 |
1级 |
||||||
30I |
15/5(1) |
|
|
1.5 |
5 |
/ |
Φ22 |
A |
20/5(1) |
|
|
1.5 |
4 |
||||
25-30/5(1) |
|
|
1.5 |
3 |
||||
40-60/5(1) |
|
|
1.5 |
2 |
||||
75-100/5(1) |
|
|
1.5 |
1 |
30×10/1 |
A,B |
||
150-200/5(1) |
|
2.5 |
|
1 |
||||
250/5(1) |
|
3.75 |
|
1 |
||||
300-450/5(1) |
|
5 |
|
1 |
||||
500/5(1) |
|
10 |
|
1 |
||||
600/5(1) |
|
10 |
|
1 |
||||
40I |
10/5(1) |
|
|
1.5 |
8 |
/ |
Φ30 |
A |
15/5(1) |
|
|
1.5 |
5 |
||||
20/5(1) |
|
|
1.5 |
4 |
||||
25-30/5(1) |
|
|
1.5 |
3 |
||||
40-60/5(1) |
|
|
1.5 |
2 |
||||
75/5(1) |
|
|
1.5 |
1 |
40×10/1 |
A,C |
||
100/5(1) |
|
|
1.5 |
1 |
||||
150/5(1) |
|
|
2.5 |
1 |
||||
200/5(1) |
|
2.5 |
|
1 |
||||
250/5(1) |
|
3.75 |
|
1 |
||||
300-450/5(1) |
|
5 |
|
1 |
||||
500-800/5(1) |
|
10 |
|
1 |
||||
1000/5(1) |
10 |
|
|
1 |
||||
60I |
150/5(1) |
|
|
2.5 |
1 |
60×10/1 60×6/1-2 |
Φ44 |
A,C |
200/5(1) |
|
2.5 |
|
1 |
||||
250/5(1) |
|
3.75 |
|
1 |
||||
300-450/5(1) |
|
5 |
|
1 |
||||
500-800/5(1) |
|
10 |
|
1 |
||||
1000-1250/5(1) |
10 |
|
|
1 |
||||
1500-2000/5(1) |
20 |
|
|
1 |
||||
2500/5(1) |
30 |
|
|
1 |
||||
80I |
150/5(1) |
|
|
2.5 |
1 |
80×10/1 |
Φ50 |
A,C |
200-250/5(1) |
|
2.5 |
|
1 |
||||
300-450/5(1) |
|
5 |
|
1 |
||||
500-800/5(1) |
|
10 |
|
1 |
||||
1000-1250/5(1) |
10 |
|
|
1 |
||||
1500-2000/5(1) |
20 |
|
|
1 |
||||
2500-3000/5(1) |
30 |
|
|
1 |
规格 |
额定电流比(A) |
准确级及相应额定负荷(VA) |
穿心匝数(匝) |
母排规格(mm)/根数 |
安装方式 |
||
0.2级 |
0.5级 |
1级 |
|||||
30II |
100/5(1) |
|
|
1.5 |
1 |
30x10/1-2 |
A,C |
150/5(1) |
|
|
1.5 |
1 |
|||
200/5(1) |
|
2.5 |
|
1 |
|||
250/5(1) |
|
3.75 |
|
1 |
|||
300-450/5(1) |
|
5 |
|
1 |
|||
500-600/5(1) |
|
10 |
|
1 |
|||
40II |
100/5(1) |
|
|
1.5 |
1 |
40×10/ 1-2 |
A,C |
150/5(1) |
|
|
2.5 |
1 |
|||
200/5(1) |
|
2.5 |
|
1 |
|||
250/5(1) |
|
3.75 |
|
1 |
|||
300-450/5(1) |
|
5 |
|
1 |
|||
500-800/5(1) |
|
10 |
|
1 |
|||
1000/5(1) |
10 |
|
|
1 |
|||
50Ⅱ |
150 |
|
|
2.5 |
1 |
50×10/ 1-2 |
|
200-250/5(1) |
|
2.5 |
|
1 |
|||
300-450/5(1) |
|
5 |
|
1 |
|||
500-800/5(1) |
|
10 |
|
1 |
|||
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500/5(1) |
20 |
|
|
1 |
|||
60Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
60×10/ 1-2 |
C |
300-450/5(1) |
|
5 |
|
1 |
|||
500-800/5(1) |
|
10 |
|
1 |
|||
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500/5(1) |
30 |
|
|
1 |
|||
60×50Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
60×10/ 1-3 |
D
|
300-450/5(1) |
|
5 |
|
1 |
|||
500-800/5(1) |
|
10 |
|
1 |
|||
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500/5(1) |
30 |
|
|
1 |
|||
80Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
80×10/ 1-2 |
|
300-450/5(1) |
|
5 |
|
1 |
|||
500-800/5(1) |
|
10 |
|
1 |
|||
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-3000/5(1) |
30 |
|
|
1 |
|||
80×50Ⅱ |
200-250/5(1) |
|
2.5 |
|
1 |
80×10/ 1-3 |
|
300-450/5(1) |
|
5 |
|
1 |
|||
500-800/5(1) |
|
10 |
|
1 |
|||
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-3000/5(1) |
30 |
|
|
1 |
|||
100Ⅱ |
300-450/5(1) |
|
5 |
|
1 |
100×10/ 1-2 |
|
500-800/5(1) |
|
10 |
|
1 |
|||
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-3000/5(1) |
30 |
|
|
1 |
|||
100×50Ⅱ |
300-450/5(1) |
|
5 |
|
1 |
100×10/ 1-3 |
|
500-800/5(1) |
|
10 |
|
1 |
|||
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-3000/5(1) |
30 |
|
|
1 |
|||
100×80Ⅱ |
600-800/5(1) |
|
10 |
|
1 |
100×10/ 1-4 |
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-4000/5(1) |
30 |
|
|
1 |
|||
120×50Ⅱ |
500-800/5(1) |
|
10 |
|
1 |
120×10/ 1-3 |
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-5000/5(1) |
30 |
|
|
1 |
|||
130×50Ⅱ |
600-800/5(1) |
|
10 |
|
1 |
125×10/1-3 130×10/1-3 60×10/2-6 |
|
1000-1250/5(1) |
10 |
|
|
1 |
|||
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-5000/5(1) |
30 |
|
|
1 |
|||
120×80Ⅱ 150×50Ⅱ |
1000-1250/5(1) |
10 |
|
|
1 |
120×10/ 1-4 |
D |
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-5000/5(1) |
30 |
|
|
1 |
|||
170×100Ⅱ |
1500-2000/5(1) |
15 |
|
|
1 |
170×10/1-3 100×10/3-6 |
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
180×50Ⅱ |
1200-2000/5(1) |
10 |
|
|
1 |
180×10/1-3 |
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
200×50Ⅱ 220×50Ⅱ 260×50Ⅱ |
1500-2000/5(1) |
20 |
|
|
1 |
200×10/1-3 100×10/4-6 |
|
2500-5000/5(1) |
30 |
|
|
1 |
|||
260×100Ⅱ |
1200-1500/5(1) |
10 |
|
|
1 |
250×10/2-5 125×10/4-10 |
|
1500-2000/5(1) |
20 |
|
|
1 |
|||
2500-6300/5(1) |
30 |
|
|
1 |
规格 |
额定电流比(A) |
准确级及相应额定负荷(VA) |
穿心匝数(匝) |
母排规格(mm)/根数 |
安装方式 |
|
0.2级 |
0.5级 |
|||||
60Ⅲ |
200-300/5(1) |
|
2.5 |
1 |
60×10/ 1-3 |
E |
400/5(1) |
|
5 |
1 |
|||
500-800/5(1) |
|
10 |
1 |
|||
1000/5(1) |
10 |
|
1 |
|||
1200-1500/5(1) |
15 |
|
1 |
|||
2000/5(1) |
20 |
|
1 |
|||
2500/5(1) |
30 |
|
1 |
|||
80Ⅲ |
300-400/5(1) |
|
5 |
1 |
80×10/ 1-3 |
|
500-800/5(1) |
|
10 |
1 |
|||
1000/5(1) |
10 |
|
1 |
|||
1200-1500/5(1) |
15 |
|
1 |
|||
2000/5(1) |
20 |
|
1 |
|||
2500-3000/5(1) |
30 |
|
1 |
|||
100Ⅲ |
600-800/5(1) |
|
10 |
1 |
100×10/ 1-3 |
|
1000/5(1) |
10 |
|
1 |
|||
1200-1500/5(1) |
15 |
|
1 |
|||
2000/5(1) |
20 |
|
1 |
|||
2500-5000/5(1) |
30 |
|
1 |
|||
130Ⅲ |
2000/5(1) |
20 |
|
1 |
130×10/1-3 125×10/1-3 |
|
2500-5000/5(1) |
30 |
|
1 |
规格 |
额定电 流比 |
准确级 |
穿心 匝数 |
母排规格(mm)/根数 |
电缆最大 外径(mm) |
安装方式 |
0.2级 |
||||||
Z-10 |
50A/25mA |
10Ω |
|
1 |
Φ10 |
导轨式 |
规格 |
额定电 流比 |
准确级及相应额定负荷 |
穿心 匝数 |
电缆最大 外径(mm) |
0.2级 |
||||
Z-15 |
100A/20mA |
10Ω |
1 |
Φ15 |
规格 |
额定电流比 |
准确级及相应额定负荷(VA/Ω) |
电缆最大外径(mm) |
|
0.5级 |
1级 |
|||
Z-3×Φ20 |
5-100/5A |
|
1.5VA |
Φ20 |
150/5A |
1.5VA |
|
||
200/5A |
2.5VA |
|
||
5-100/1A |
|
1.5Ω |
||
150/1A |
1.5Ω |
|
||
200/1A |
2.5Ω |
|
||
5-200A/50mA |
0.5VA |
|
规格 |
额定电流比 |
准确级及相应额定负荷(Ω) |
穿心 匝数 |
电缆最大 外径(mm) |
||
0.2级 |
0.5级 |
1级 |
||||
W-7 |
5-15/5mA |
10 |
|
|
1 |
Φ7 |
10-30/10mA |
10 |
|
|
1 |
||
5/20mA |
|
10 |
|
2 |
||
10-15/20mA |
|
10 |
|
1 |
||
20-60/20mA |
10 |
|
|
1 |
规格 |
额定电流比 |
准确级及相应额定负荷(Ω) |
穿心 匝数 |
电缆最大 外径(mm) |
||
0.2级 |
0.5级 |
1级 |
||||
W-8 |
5-15/5mA |
10 |
|
|
1 |
Φ8 |
10-30/10mA |
10 |
|
|
1 |
||
5/20mA |
|
10 |
|
2 |
||
10-15/20mA |
|
10 |
|
1 |
||
20-60/20mA |
10 |
|
|
1 |
规格 |
额定电流比 |
准确级及相应额定负荷(Ω) |
穿心 匝数 |
电缆最大 外径(mm) |
||
0.2级 |
0.5级 |
1级 |
||||
W-12 |
5/20mA |
|
10 |
|
4 |
Φ12 |
10-15/20mA |
|
10 |
|
2 |
||
20/20mA |
|
10 |
|
1 |
||
30-100/20mA |
10 |
|
|
1 |
规格 |
额定电流比 |
准确级及相应额定负荷(Ω) |
穿心 匝数 |
电缆最大 外径(mm) |
||
0.2级 |
0.5级 |
1级 |
||||
W-20 |
5/20mA |
|
10 |
|
4 |
Φ20 |
10-15/20mA |
|
10 |
|
2 |
||
20/20mA |
|
10 |
|
1 |
||
30-200/20mA |
10 |
|
|
1 |
规格 |
额定电 流比 |
准确级及相应额定负荷(Ω) |
耐压 |
开路电压 |
环境温度℃ |
安装方式 |
||
0.2级 |
0.5级 |
1级 |
||||||
EMS |
50A/10mA |
10 |
|
|
3kV |
≤7.8V |
-20℃~70℃ |
导轨 |
